首頁進口晶振S53305T-50.000-X-R|50MHz|3.3V|AKER安基晶振

S53305T-50.000-X-R|50MHz|3.3V|AKER安基晶振

產品型號：32417982
晶振頻率：50MHz
晶振尺寸：5.0*3.2*1.2mm
產品應用： AKER安基晶振,S5進口有源晶振,S53305T-50.000-X-R晶振,5032封裝晶振,石英晶體振蕩器,四腳貼片晶振,頻率50MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,高品質晶振,耐高溫晶振,低老化晶振,智能手機晶振,音頻系統晶...

S53305T-50.000-X-R|50MHz|3.3V|AKER安基晶振,AKER安基晶振,S5進口有源晶振,S53305T-50.000-X-R晶振,5032封裝晶振,石英晶體振蕩器,四腳貼片晶振,頻率50MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,高品質晶振,耐高溫晶振,低老化晶振,智能手機晶振,音頻系統晶振,電信交換機晶振,專業視頻設備晶振.

S53305T-50.000-X-R|50MHz|3.3V|AKER安基晶振特點：
-HCMOS輸出時鐘振蕩器
-超微型

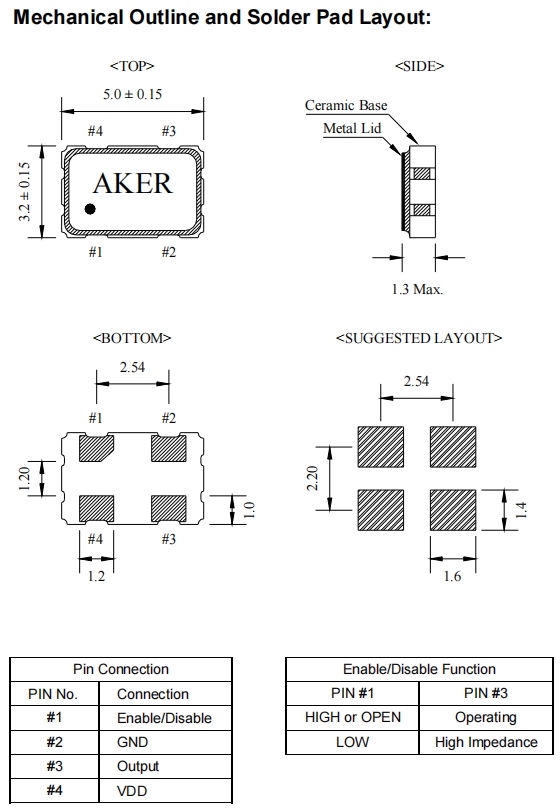

-5.0 x 3.2mm表面安裝
-產品通用規格

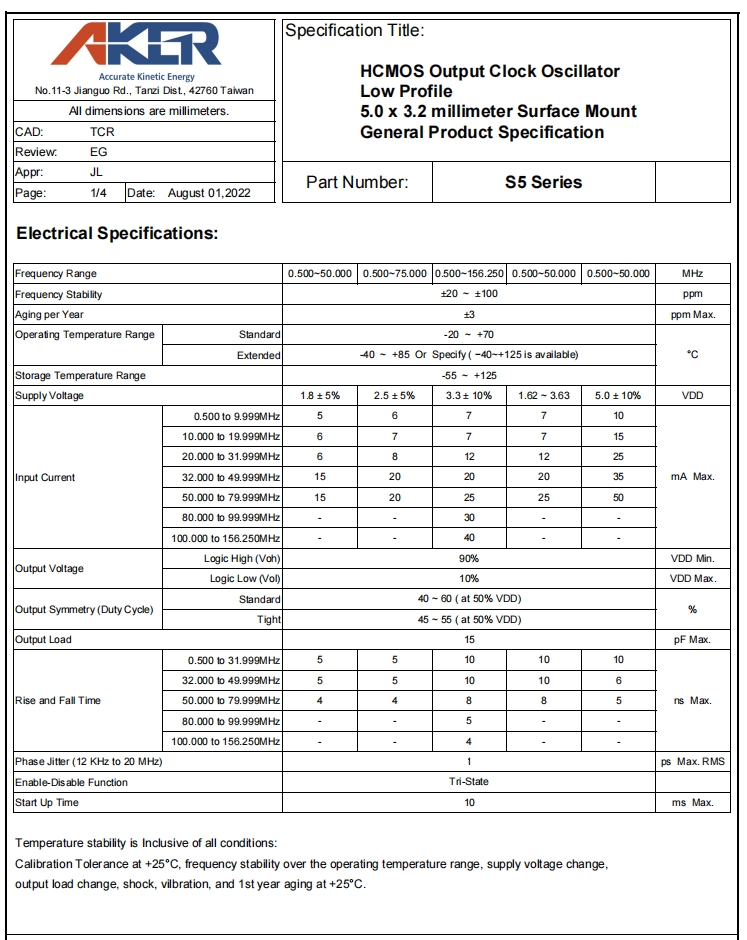

S53305T-50.000-X-R|50MHz|3.3V|AKER安基晶振規格表

Frequency Range		50					MHz
Frequency Stability		±50					ppm
Aging per Year		±3					ppm Max
Operating Temperature Range	Standard	-20~+70					*C
Operating Temperature Range	Extended	-40 - +85 Or Specify(-40--+125 is available)
Storage Temperature Range		55+125
Supply Voltage		1.8±5%	2.5±5%	3.3±10%	1.62-3.63	5.0 ± 10%	VDD
Input Current	0.500 to 9.999MHz	5	6	7	7	10	mA Max.
	10.000 to 19.999MHz	6	7	7	7	15
	20.000 to 31.999MHz	6	8	12	12	25
	32.000 to 49.999MHz	15	20	20	20	35
	50.000 to 79.999MHz	15	20	25	25	50
	80.000 to 99.999MHz	-	-	30	-	-
	100.000 to 156.250MHz	-	-	40	-	-
Output Voltage	Logic High Voh)	90%					VDD Min.
Output Voltage	Logic Low (Vol	10%					VDD Max.
Output Symmetry (Duty Cycle)	Standard	40-60( at 50%%VDD）					%
Output Symmetry (Duty Cycle)	Tight	45-55( at 50%VDD）					%
Output Level		CMOS
Output Load		15					pF Max.
Rise and Fall Time	0.500 to 31.999MHz	5	5	10	10	10	ns Max.
	32.000 to 49.999MHz	5	5	10	10	6
	50.000 to 79.999MHz	4	4	8	8	5
	80.000 to 99.999MHz	-	-	5	-	-
	100.000 to 156.250MHz	-	-	4	-	-
Phase Jitter (12 KHzto 20 MHz)		1					ps Max. RMS
Enable-Disable Function		Tri-State
Start Up Time		10					ms Max.
