首頁進口晶振S2A3305-156.250-H-X-R|156.25MHz|3.3V|AKER安基晶振

S2A3305-156.250-H-X-R|156.25MHz|3.3V|AKER安基晶振

產品型號：33735436
晶振頻率：156.25MHz
晶振尺寸：2.5*2.0*1.0mm
產品應用： AKER安基晶振,S2A HCSL有源晶振,差分晶振,S2A3305-156.250-H-X-R晶振,進口晶振,六腳貼片晶振,石英晶體振蕩器,頻率156.25MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,低抖動晶振,高品質晶振,小體積晶振,數字式攝像...

S2A3305-156.250-H-X-R|156.25MHz|3.3V|AKER安基晶振,AKER安基晶振,S2A HCSL有源晶振,差分晶振,S2A3305-156.250-H-X-R晶振,進口晶振,六腳貼片晶振,石英晶體振蕩器,頻率156.25MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,低抖動晶振,高品質晶振,小體積晶振,數字式攝像機存儲晶振,無線接入點晶振,固態硬盤晶振,顯示和控制面板晶振.

S2A3305-156.250-H-X-R|156.25MHz|3.3V|AKER安基晶振特點：
-時鐘振蕩器
-HCSL-免費輸出

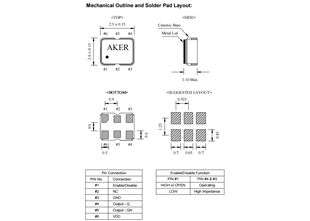

-2.5x 2.0mm表面安裝
-產品通用規格

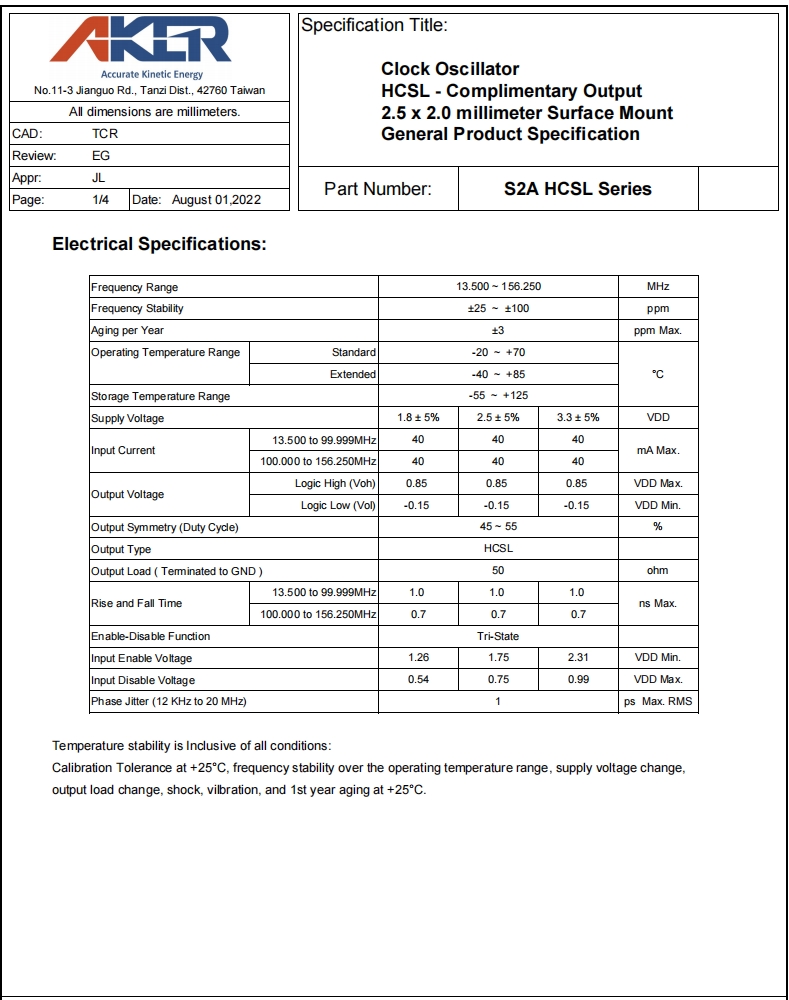

S2A3305-156.250-H-X-R|156.25MHz|3.3V|AKER安基晶振規格表

Frequency Range		156.25			MHz
Frequency Stability		±50			ppm
Aging per Year		±3			ppm Max
Operating Temperature Range	Standard	-20~+70			*C
	Extended	-40 - +85
Storage Temperature Range		-55+125
Supply Voltage		1.8±5%	2.5±5%	3.3±10%	VDD
Input Current	13.500 to 99.999MHz	40	40	40	mA Max.
	100.000 to 156.250MHz	40	40	40
Output Voltage	Logic High （Voh)	0.85	0.85	0.85	VDD Max.
	Logic Low (Vol）	-0.15	-0.15	-0.15	VDD Min.
Output Symmetry (Duty Cycle)		45~55			%
Output Type		HCSL
Output Load (Terminated to GND )		50			ohm
Rise and Fall Time	13.500 to 99.999MHz	1.0	1.0	1.0	ns Max.
	100.000 to 156.250MHz	0.7	0.7	0.7
Enable-Disable Function		Tri-State
Input Enable Voltage		1.26	1.75	2.31	VDD Min.
Input Disable Voltage		0.54	0.75	0.99	VDD Max.
Phase Jitter (12 KHz to 20 MHz)		1			ps Max. RMS
