- 產品型號：19252892
- 晶振頻率：24.000MHZ
- 晶振尺寸：2.0*1.6*0.8mm
- 產品應用： NDK汽車晶振,NZ2016SH-24.000MHZ-NSC5022C晶振,2016 24M OSC 3.3V 50ppm 汽車導航系統晶振,汽車音響設備晶振,汽車攝像頭專用晶振,無線模塊晶振,NDK通信設備晶振,NZ2016SH晶振,2016晶振 產品主要應用于汽車導航系統,汽...
-

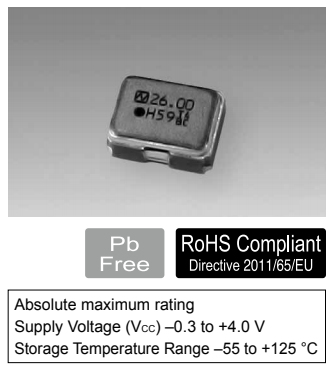

NZ2016SH-24.000MHZ-NSC5022C晶振
NDK汽車晶振,NZ2016SH-24.000MHZ-NSC5022C晶振,2016 24M OSC 3.3V 50ppm 汽車導航系統晶振,汽車音響設備晶振,汽車攝像頭專用晶振,無線模塊晶振,NDK通信設備晶振,NZ2016SH晶振,2016mm晶振
產品主要應用于汽車導航系統,汽車音響設備和攝像頭,也同樣適用于智能手機,平板電腦,筆記本電腦,PC卡等。在音頻設備和無線模塊，SDH/SONET、WiMAX、LTE等通信設備和基站同樣適用。
NZ2016SH-24.000MHZ-NSC5022C晶振參數表
| Item | Symbol | Value | Unit | ||||
| Nominal frequency range | fnom | 1.5≦F≦ 80 | MHz | ||||
| Package size (L×W×H) | - | 2.0 × 1.6 × 0.7 | mm | ||||
| Supply voltage | Vcc | +1.8 to +3.3 | V | ||||
| Current consumption | ICC | Max. 9.0 | mA | ||||
| Stand-by current | IST | Max. 20 | μA | ||||
| Output specification | - | CMOS | - | ||||
| Load | CL | Max. 15 | pF | ||||
| Storage temperature range | Tstr | -55 to +125 | ℃ | ||||
| Operating temperature range | Topr | -40 to +125 | -40 to +105 | -40 to +85 | -10 to +70 | -10 to +60 | ℃ |
| Overall frequency tolerance | Df/fnom | Max. ±100 | Max. ±50 | Max. ±50 | Max. ±30 | Max. ±20 | ppm |
| Output voltage | VOL | Max. 0.1 VCC | V | ||||
| Output voltage | VOH | Min. 0.9 VCC | V | ||||
| Rise (tr), fall (tf) time +1.8V | tr/tf | Max.6 | ns | ||||
| Rise (tr), fall (tf) time +2.5 to +3.3V | tr/tf | Max.5 | ns | ||||
| Symmetry | SYM | 45 to 55 | % | ||||
| Start-up time | tsu | Max. 4 | ms | ||||
NZ2016SH-24.000MHZ-NSC5022C晶振特征
● 支持 –40 至 +125°C 的寬溫度范圍。
● 超緊湊輕便。尺寸 ： 2.0 x 1.6 x 0.7 毫米， 重量 ： 0.01 克.
● 該晶體時鐘振蕩器可以不容易支持低頻（從1.5MHz開始）
● 使用相同尺寸的晶體單元實現。
● 編帶單元可實現自動安裝 IR 回流焊（無鉛）是可能的。
● 無鉛。
● 符合AEC-Q200標準。

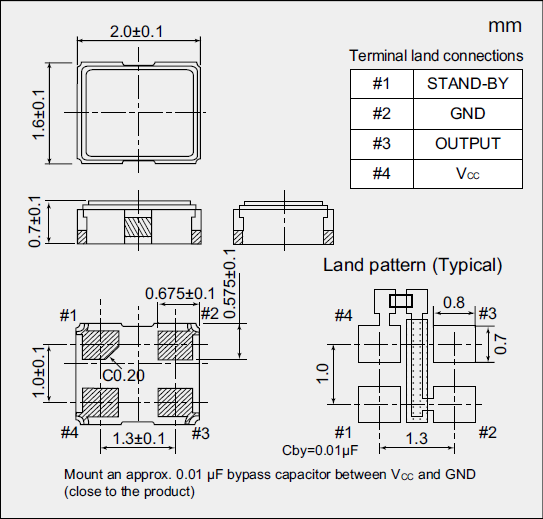

NZ2016SH-24.000MHZ-NSC5022C晶振尺寸圖 電平圖
| Overall frequency tolerance | Operating temperature range | Supply voltage（V） | |||
| （ppm） | （°C） | Typ. +1.8 | Typ. +2.5 | Typ. +3.0 | Typ. +3.3 |
| ±100 | -40 to +125 | NSC5019A | NSC5019B | NSC5019C | NSC5019D |
| ±50 | -40 to +105 | NSC5021A | NSC5021B | NSC5021C | NSC5021D |
| ±50 | -40 to +85 | NSC5022A | NSC5022B | NSC5022C | NSC5022D |
| ±30 | -10 to +70 | NSC5024A | NSC5024B | NSC5024C | NSC5024D |
| ±20 | -10 to +60 | NSC5025A | NSC5025B | NSC5025C | NSC5025D |
訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
