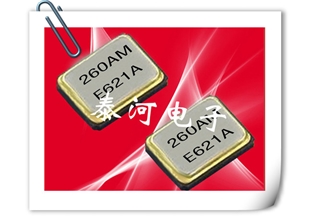

- 產品型號：45704460
- 晶振頻率：32MHZ
- 晶振尺寸：2.5*2.0*0.5mm
- 產品應用： Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃,尺寸為2520mm,頻率為32MHZ,頻率容差20ppm,負載電容12pF，工作溫度-20~+75℃，愛普生進口晶振，EPSON晶振，無源貼片晶振，石英晶體諧振器，SMD晶體，石英貼片...
-

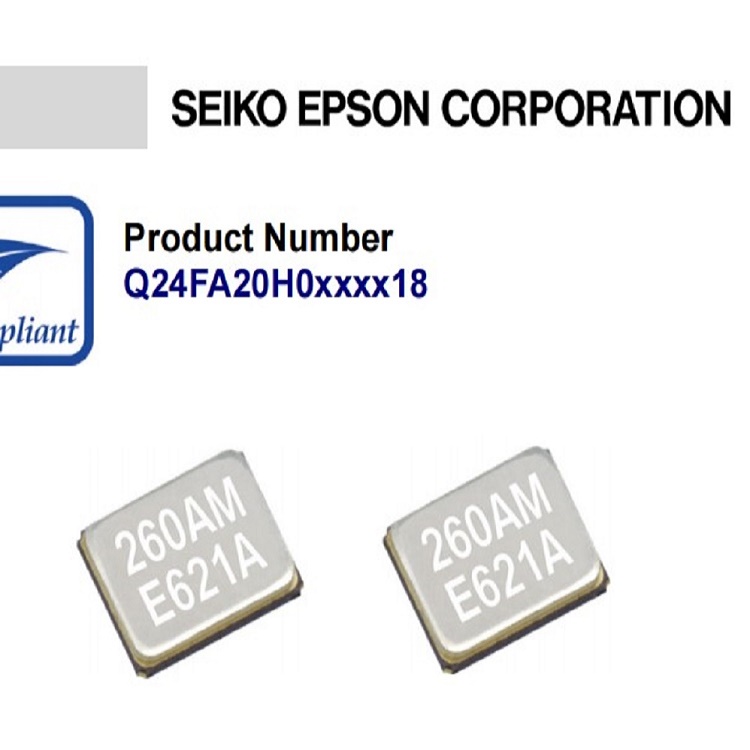

Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃
.JPG)
Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃,尺寸為2520mm,頻率為32MHZ,頻率容差20ppm,負載電容12pF，工作溫度-20~+75℃，愛普生進口晶振，EPSON晶振，無源貼片晶振，石英晶體諧振器，SMD晶體，石英貼片晶振，無源晶振，高性能晶振，低耗能晶振，2520mm無源晶體，32MHZ貼片晶振，移動電話晶振，藍牙晶振，儀器設備晶振，無線網絡晶振，智能產品晶振，Q24FA20H00116無源晶體，Q24FA20H00100石英貼片晶振。
無源晶振產品主要應用范圍：手機，藍牙，無線局域網， ISM波段無線電，主控板時鐘，儀器設備，無線網絡，智能產品等應用程序。Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃.

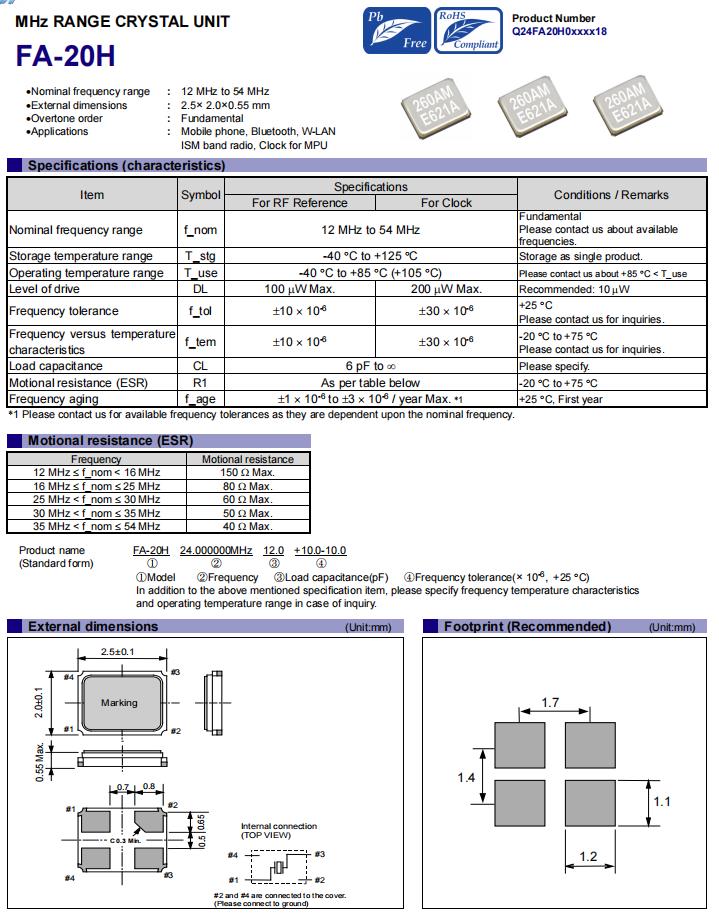

Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃ 參數圖
| Item | Symbol | Specifications | Conditions / Remarks | ||||||||||
| For RF Reference | For Clock | ||||||||||||
| Nominal frequency range | f_nom | 12MHz to 54MHz |
Fundamental Please contact us about available frequencies. |
||||||||||
| Storage temperature range | T_stg | -40 °C to + 125 °C | Storage as single product. | ||||||||||
| Operating temperature range | T_use | -40 °C to +85 °C (+105 °C) | Please contact us about +85 °C < T_use | ||||||||||
| Level of drive | DL | 100 µW Max. | 200 µW Max. | Recommended: 10 µW | |||||||||
| Frequency tolerance | f_tol | ± 10 × 10-6 | ±30 × 10-6 |
+25 °C Please contact us for inquiries. |
|||||||||
 Frequency versus temperaturecharacteristics |
f_tem | ± 10 × 10-6 | ±30 × 10-6 |
-20 °C to +75 °C Please contact us for inquiries. |
|||||||||
| Load capacitance | CL | 6 pF to ∞ | Please specify. | ||||||||||
| Motional resistance (ESR) | R1 | As per table below | -20 °C to +75 °C | ||||||||||
| Frequency aging | f_age | ± 1 × 10-6 to ±3 × 10-6 / year Max. *1 |
+25 °C, First year |
||||||||||
•標稱頻率范圍:12mhz至54mhz
•外部尺寸:2.5×2.0×0.55mm
•泛音順序:基本
•應用范圍:手機、藍牙、無線局域網
: ISM波段無線電，主控板時鐘
Q24FA20H00106,FA-20H,2520mm,藍牙專用,32兆赫茲,-20~+75℃ 尺寸圖
訂購產品時請注明型號名稱、頻率和規格編號。
有關規格的更多問題，請隨時與我們聯系。
微信：13824306246 QQ:794113422 郵箱：taiheth@163.com 座機:0755-27872782
更多相關日本愛普生石英晶振型號
微信：13824306246 QQ:794113422 郵箱：taiheth@163.com 座機:0755-27872782
更多相關日本愛普生石英晶振型號
| 編碼 | 尺寸 | 型號 | 頻率 | 負載 | 頻率 @+25°C | 工作溫度 |
| Q24FA20H00001 | 2.5 x 2 x 0.55mm | FA-20H | 18.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| Q24FA20H00003 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 9 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00005 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00006 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00008 | 2.5 x 2 x 0.55mm | FA-20H | 48.000000 MHz | 7 pF | +/-50 ppm | -20 to +70 °C |
| Q24FA20H00029 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00031 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00036 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 11.5 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00038 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 12 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00039 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 9 pF | -9/+11 ppm | -20 to +75 °C |
| Q24FA20H00044 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00047 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 8.5 pF | +/-15 ppm | -20 to +85 °C |
| Q24FA20H00050 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00051 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 12 pF | +/-10 ppm | -15 to +75 °C |
| Q24FA20H00052 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00053 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 9 pF | +/-20 ppm | -20 to +70 °C |
| Q24FA20H00054 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 12 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00059 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00066 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 9 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00069 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 10 pF | +/-10 ppm | -30 to +85 °C |
| Q24FA20H00070 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00073 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00074 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 10.5 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00077 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00079 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00085 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00086 | 2.5 x 2 x 0.55mm | FA-20H | 24.576000 MHz | 8 pF | +/-15 ppm | -20 to +75 °C |
| Q24FA20H00087 | 2.5 x 2 x 0.55mm | FA-20H | 30.000000 MHz | 10 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00092 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00093 | 2.5 x 2 x 0.55mm | FA-20H | 12.000000 MHz | 10 pF | +/-30 ppm | -20 to +70 °C |
| Q24FA20H00095 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00097 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00100 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 20 pF | +/-20 ppm | -20 to +75 °C |
| Q24FA20H00106 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00114 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00115 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 8 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00116 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 18 pF | +/-30 ppm | -30 to +85 °C |
| Q24FA20H00118 | 2.5 x 2 x 0.55mm | FA-20H | 27.120000 MHz | 18 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00122 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00126 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 15 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00128 | 2.5 x 2 x 0.55mm | FA-20H | 20.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00132 | 2.5 x 2 x 0.55mm | FA-20H | 24.576000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00137 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 8 pF | +/-10 ppm | -20 to +80 °C |
| Q24FA20H00139 | 2.5 x 2 x 0.55mm | FA-20H | 30.000000 MHz | 8 pF | +/-30 ppm | -40 to +85 °C |
| Q24FA20H00147 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00150 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 8 pF | +/-30 ppm | -20 to +85 °C |
| Q24FA20H00151 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 16 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00152 | 2.5 x 2 x 0.55mm | FA-20H | 12.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00153 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 12 pF | +/-10 ppm | -30 to +85 °C |
| Q24FA20H00155 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 8 pF | +/-10 ppm | -30 to +85 °C |
| Q24FA20H00156 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 7 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00166 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 18 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00169 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00172 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 20 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00175 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 10 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00176 | 2.5 x 2 x 0.55mm | FA-20H | 20.000000 MHz | 9 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00193 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00196 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00201 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00202 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 14 pF | +/-30 ppm | -20 to +75 °C |
| Q24FA20H00208 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 13 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00209 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 9 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00214 | 2.5 x 2 x 0.55mm | FA-20H | 40.000000 MHz | 10 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00223 | 2.5 x 2 x 0.55mm | FA-20H | 30.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00225 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 8 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00228 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 10 pF | +/-30 ppm | -30 to +85 °C |
| Q24FA20H00229 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 6 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00232 | 2.5 x 2 x 0.55mm | FA-20H愛普生晶振 | 16.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00233 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 12 pF | +/-10 ppm | -20 to +85 °C |
| Q24FA20H00238 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 12 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00241 | 2.5 x 2 x 0.55mm | FA-20H | 27.000000 MHz | 12 pF | +/-30 ppm | -20 to +70 °C |
| Q24FA20H00242 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 12 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00247 | 2.5 x 2 x 0.55mm | FA-20H | 16.000000 MHz | 16 pF | +/-10 ppm | -40 to +85 °C |
| Q24FA20H00249 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 7 pF | +/-30 ppm | -20 to +70 °C |
| Q24FA20H00251 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 10 pF | +/-25 ppm | -20 to +75 °C |
| Q24FA20H00260 | 2.5 x 2 x 0.55mm | FA-20H | 32.000000 MHz | 10 pF | +/-10 ppm | -20 to +75 °C |
| Q24FA20H00266 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-30 ppm | -40 to +85 °C |
| Q24FA20H00270 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-30 ppm | -30 to +85 °C |
| Q24FA20H00271 | 2.5 x 2 x 0.55mm | FA-20H | 24.000000 MHz | 10 pF | +/-20 ppm | -30 to +70 °C |
| Q24FA20H00272 | 2.5 x 2 x 0.55mm | FA-20H | 25.000000 MHz | 18 pF | +/-30 ppm | -20 to +70 °C |
| Q24FA20H00276 | 2.5 x 2 x 0.55mm | FA-20H | 27.120000 MHz | 10 pF | +/-15 ppm | -20 to +75 °C |
| Q24FA20H00279 | 2.5 x 2 x 0.55mm | FA-20H | 26.000000 MHz | 12 pF | +/-10 ppm | -20 to +70 °C |
| Q24FA20H00287 | 2.5 x 2 x 0.55mm | FA-20H | 30.000000 MHz | 8 pF | +/-10 ppm | -20 to +75 °C |
