- 產品型號：14265759
- 晶振頻率：50MHz
- 晶振尺寸：
- 產品應用： 歐美進口晶振,Jauch晶振,JCO8插件晶振,O 50.0-JCO8-3-B-T1-LF晶振,有源晶振,石英晶體振蕩器,頻率50MHz,電壓5V,頻率穩定性50ppm,工作溫度-40~85°C,抗震動晶振,低老化晶振,低相位抖動晶振,DVD家電影音系統晶振,數字電表...
-
O 50.0-JCO8-3-B-T1-LF|Oscillator Crystal
O 50.0-JCO8-3-B-T1-LF|Oscillator Crystal,歐美進口晶振,Jauch晶振,JCO8插件晶振,O 50.0-JCO8-3-B-T1-LF晶振,有源晶振,石英晶體振蕩器,頻率50MHz,電壓5V,頻率穩定性50ppm,工作溫度-40~85°C,抗震動晶振,低老化晶振,低相位抖動晶振,DVD家電影音系統晶振,數字電表晶振,微處理器晶振,家用電器晶振.
O 50.0-JCO8-3-B-T1-LF|Oscillator Crystal特點：
-波接溫度:最高260°C
-金屬封裝
-波接溫度:最高260°C
-金屬封裝

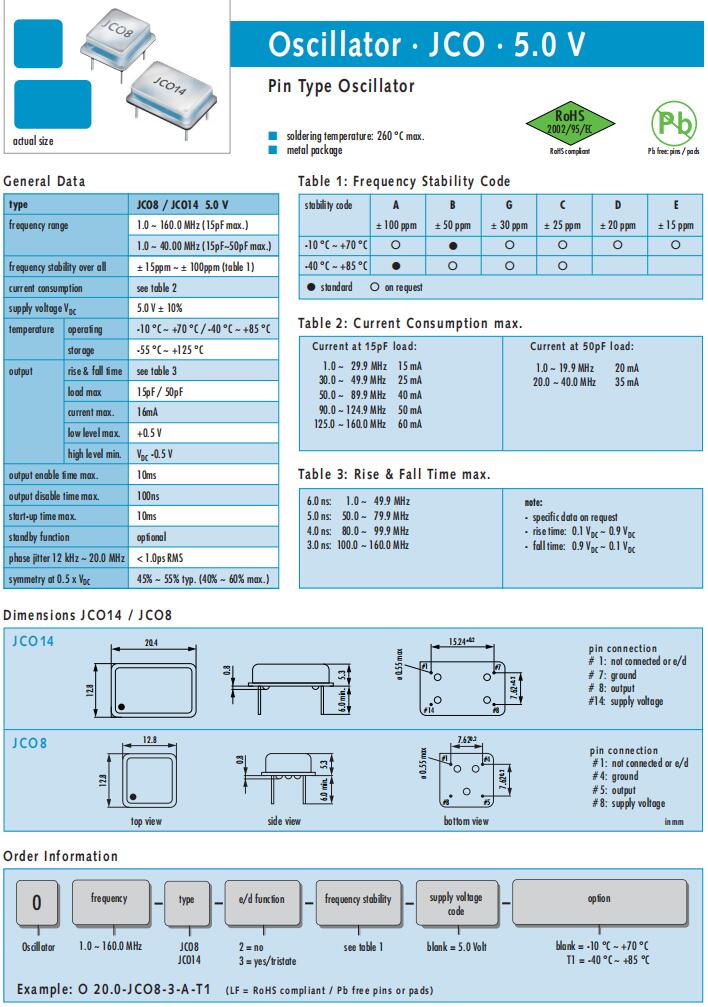

O 50.0-JCO8-3-B-T1-LF|Oscillator Crystal規格表
| TYPE | JCO8 | |
| frequency range | 50 MHz | |
| frequency stability over all** | ± 50 ppm | |
| current consumption | 40 mA | |
| supply voltage VDC | 5.0 V ±10% | |
| temperature | operating | -40℃-+85℃ |
| storage | -55℃-+125℃ | |
| output | rise & fall time | 5.0 ns max |
| load max | 15 pF | |
| current max | 16 mA | |
| low level max | +0.5 V | |
| high level min. | VDC -0.5 V | |
| output enable time max. | 10 ms | |
| output disable time max. | 100ns | |
| start-up time max. | 10 ms | |
| standby function | optional | |
| standby current max. | 10µA | |
| phase jitter 12 kHz ~ 20.0 MHz | < 1.0 ps RMS | |
| symmetry at 0.5 x VDC | 45% ~ 55% typ. (40% ~ 60% max.) | |
.jpg)

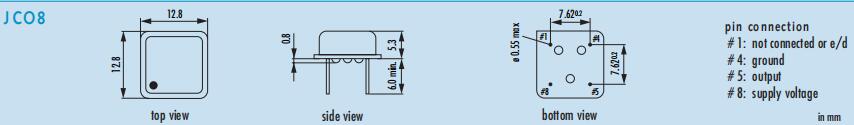

O 8.1920-JCO8-3-B-T1-LF|Jauch Crystal尺寸圖
| Jauch晶振原廠編碼 | 制造商 | 型號 | 頻率 | 頻率容差 | 負載電容 | 工作溫度 |
| Q 0.032768-JTX410-7-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-8-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 8pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-10-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 10pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-12.5-20-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-9-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-7-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-8-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 8pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-10-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 10pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-12.5-10-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±10ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-9-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-8-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 8pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-7-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-12.5-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX410-10-30-T1-LF | Jauch晶振 | JTX410 | 32.768kHz | ±30ppm | 10pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-9-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-7-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-9-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-7-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-9-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-7-20-T3-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 7pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 125°C |
| Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-6-20-T1-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 85°C |
| Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C |
| Q 0.032768-JTX310-6-20-T2-HMR-LF | Jauch晶振 | JTX310 | 32.768kHz | ±20ppm | 6pF | -40°C ~ 105°C |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-12.5-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz | ±20ppm | 9pF | -40°C ~ 85°C |
| Q 0.032768-JTX210-9-20-T1-LF | Jauch晶振 | JTX210 | 32.768kHz |
