Renesas瑞薩晶振
-
SKYWORKS晶振
- 產品型號：23245500
- 晶振頻率：270MHz
- 晶振尺寸：7.0*5.0*1.5mm
- 產品應用： 美國思佳訊晶振,Skyworks晶振,Si544進口晶振,544BACB001808ACG晶振,石英晶體振蕩器,7050mm晶振,LVDS晶振,有源差分晶振,八腳貼片晶振,頻率270MHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,低相噪晶振,低抖動晶振,高...
-

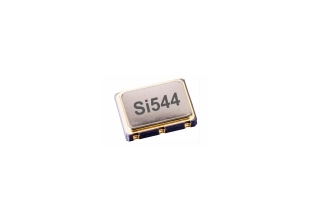

美國思佳訊晶振,544BACB001808ACG,6G信號接收器晶振
美國思佳訊晶振,544BACB001808ACG,6G信號接收器晶振,美國思佳訊晶振,Skyworks晶振,Si544進口晶振,544BACB001808ACG晶振,石英晶體振蕩器,7050mm晶振,LVDS晶振,有源差分晶振,八腳貼片晶振,頻率270MHz,電壓3.3V,頻率穩定性20ppm,工作溫度-40~85°C,低相噪晶振,低抖動晶振,高穩定性晶振,高品質晶振,6G信號接收器晶振,FPGA/ASIC時鐘晶振,專業視頻設備晶振,光終端設備晶振.
美國思佳訊晶振,544BACB001808ACG,6G信號接收器晶振特點：
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•非常低的抖動:150 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周
•I2C可編程到任何頻率從0.2到1500 MHz，分辨率< 1 ppb
•非常低的抖動:150 fs類型RMS (12 kHz - 20 MHz)
•配置多達4引腳可選擇的啟動頻率
•I2C接口支持100kbps、400kbps和1Mbps(快速模式+)
•出色的PSNR和電源抗噪性:-80 dBc類型
•3.3 V, 2.5 V和1.8 V VDD供電操作從相同的零件號
•LVPECL, LVDS, CML, HCSL, CMOS和Dual CMOS輸出選項
•2.5x3.2, 3.2x5, 5x7 mm包裝選項
•樣品交付周期為1-2周
美國思佳訊晶振,544BACB001808ACG,6G信號接收器晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 270MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±20 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 111mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 45%~55% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.275V Max |
LVDS
|
| VO | 0.9Vpp Max | ||
| 輸入電壓 | VIH | 0.7×VDD Min |
|
| VIL | 0.3×VDD Max | ||
| 上升下降時間 | tr/tf | 350ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)
美國思佳訊晶振,544BACB001808ACG,6G信號接收器晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 |
| 544BACC000112ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000118ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AADA000163ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BADB001939ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001962ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000798ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC001713ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001952ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001808ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001939ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000627ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001530ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001961ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000126ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACB001960ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC001741ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 544BADB000991ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA001427BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACC000118BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001960ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB001011BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAC002065BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAC001541BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000126BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000136BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000111BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V ~ 3.3V |
| 544AADA000163ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAA000137BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V ~ 3.3V |
| 544ACAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACA000420BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAA000137BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000126ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC000157BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB000482BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCC000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAC001975BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC001713ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCBA000544BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC001808BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA001541BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB000482BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA000131BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC001808BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000136BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000798ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACC000112ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000110BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC000157BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001952ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BADB000991ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V ~ 3.3V |
| 544AADC000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ABAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544AAAA000118BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA002065BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACB001961ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB001011BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544AADC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAC000111BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA002065BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544ACAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACB001939ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001530ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA001541BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAA001741BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000215BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACA000420BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC001741ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCB000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000627ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCC000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000544BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAC001541BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000544BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000215BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA000131BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BCAA000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000110BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BBCB000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BCBA000544BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BAAA001741BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001962ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAA001982BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BBCB000126BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACB001808ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCB000126BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAC002065BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAB000313BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAC001975BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BCAB000313BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAA001982BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BACC000118BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000126BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V ~ 3.3V |
| 544AAAA000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BADB001939ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA001427BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V ~ 3.3V |
| 544BBCB000177BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 297 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AAAA000110BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000121BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000126ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000798ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V, 3.3V |
| 544AADA000163ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V, 3.3V |
| 544AADC000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544BAAB000121BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000111BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000157BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000544BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000627ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001713ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001741ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001808BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000112ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000118BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000199BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000627ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001530ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001530BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001926BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001927BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001928BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BADB000991ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BADB001939ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAEA001936BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000215BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AAAA000110BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000121BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000126ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000798ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 1 MHz | LVPECL | 2.5V, 3.3V |
| 544AADA000163ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVPECL | 2.5V, 3.3V |
| 544AADC000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544BAAB000121BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000111BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000157BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 50 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000544BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000627ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001713ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 325 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001741ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001808BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000112ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000118BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000199BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000627ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001530ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001530BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001926BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001927BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001928BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BADB000991ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 135 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BADB001939ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAEA001936BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000215BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 27 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001530BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001928BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001926BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC000199BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001927BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC000627ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAC000115CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000115CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000159CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AACC000110ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544EAAC002354ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 103 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 544BACC000188BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 12 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000115BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000112BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC002361BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 245.76 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001704CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC001926BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001927BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC000199BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001530BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC001928BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V ~ 3.3V |
| 544BACC000627ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000115CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAC000159CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AACC000110ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 74.25 MHz | LVPECL | 2.5V, 3.3V |
| 544BAAC002361BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 245.76 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544EAAC002354ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 103 MHz | HCSL | 1.8V, 2.5V, 3.3V |
| 544BBAC000115CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000115BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC001704CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAC000112BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACC000188BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 12 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544ABAC001975BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V, 3.3V |
| 544BBAC000118BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAC001541BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCC000121BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544ACAC000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAC002065BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAC002111BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 163.2 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAC000118BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCC000121ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAC000199CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544ABAC001975BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 40.8 MHz | LVPECL | 2.5V, 3.3V |
| 544BBAC000118BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAC001541BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCC000121BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAC000118BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBCC000121ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAC000199CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 40 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAC002111BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 163.2 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACCC000597ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000115ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000131BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA001427BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA002065BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAA000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000126BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000136BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA001541BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCBA000544BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000121CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAA000112CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544ACAA000112CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA000131BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 120 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA001427BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 157 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAA002065BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAA000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000126BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000136BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 160 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA001541BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 96 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCBA000544BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA000121CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACAA000112CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAA000112CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAC002111BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 163.2 MHz | LVDS | 1.8V ~ 3.3V |
| 544ACCC000597ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544ACCC000115ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVPECL | 2.5V, 3.3V |
| 544ACAC000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAC002065BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 272.8 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAC002111BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 163.2 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAA000137BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAA001741BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACA000420BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA002302CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAA002302CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544ABAA000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA001982BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAB000126CCG | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAB000115BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544ABAA000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVPECL | 2.5V, 3.3V |
| 544ABAA001982BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 133.3125 MHz | LVPECL | 2.5V, 3.3V |
| 544BCAB000313BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 2.5V |
| 544BCAB001699ACGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAB001699ACG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BBAB000115BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BCAB000126CCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 20 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AAAA000118ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000118BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAHA001950ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | - | LVPECL | 2.5V, 3.3V |
| 544BAAA000137BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 1.024 GHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAA001741BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 70.656 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACA000420BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 644.53125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544AAAA000118ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAAA000118BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 156.25 MHz | LVPECL | 2.5V, 3.3V |
| 544AAHA001950ABG | Skyworks Solutions Inc. | Ultra™ Si544 | - | LVPECL | 2.5V, 3.3V |
| 544BBAC000115BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000112BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000126BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000177BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 297 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000112BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 10 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000126BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 200 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBCB000177BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 297 MHz | LVDS | 1.8V ~ 3.3V |
| 544BCAB000313BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 300 MHz | LVDS | 2.5V |
| 544BBCB000177BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 297 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB000482BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAB001011BBG | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001808ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001939ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001952ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001960ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001961ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001962ABG | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAB000121BCGR | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB000121BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 100 MHz | LVDS | 1.8V ~ 3.3V |
| 544BAAB000482BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.35 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BAAB001011BBGR | Skyworks Solutions Inc. | Ultra™ Si544 | 148.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001808ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 270 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001939ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 150.060024 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001952ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 202.5 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001960ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 227.272727 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001961ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.306 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BACB001962ABGR | Skyworks Solutions Inc. | Ultra™ Si544 | 121.3056 MHz | LVDS | 1.8V, 2.5V, 3.3V |
| 544BBAC000115BCG | Skyworks Solutions Inc. | Ultra™ Si544 | 125 MHz | LVDS | 1.8V, 2.5V, 3.3V |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://www.lida00.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
